Products Rectangular Connectors Inserts-HK insert series

HK insert series

Combined heavy-current inserts with multiple current options

Each insert transmits both power and signal

160V-830V / 5A-100A

Connection options include screw, axial screw, and crimp

40 search results

total:40 :

1 2 3 4 5

page:5/1

HK-009/9/18-FC
Insert

128 036 020 0001

Product column：Rectangular Connectors>>Inserts>>HK insert series

Product Introduction：Connection type:Crimp connection,Male/female:Female,Specifications:16B|32B,Number of connector contacts:9+9+18,Rated current:40A|16A|10A,Rated voltage:830V|830V|250V,Wire gauge (mm²):1.5-6mm²|0.14-4mm²|0.14-2.5mm²,Wire gauge (AWG):16-10 AWG|26-12 AWG|26-14 AWG

+more
HK-009/9/18-MC
Insert

128 036 010 0001

Product column：Rectangular Connectors>>Inserts>>HK insert series

Product Introduction：Connection type:Crimp connection,Male/female:Male,Specifications:16B|32B,Number of connector contacts:9+9+18,Rated current:40A|16A|10A,Rated voltage:830V|830V|250V,Wire gauge (mm²):1.5-6mm²|0.14-4mm²|0.14-2.5mm²,Wire gauge (AWG):16-10 AWG|26-12 AWG|26-14 AWG

+more

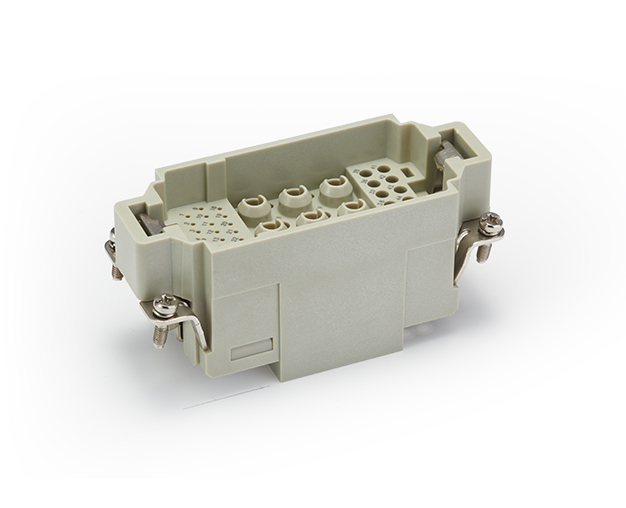

HK-009/12/25-MC
Insert

128 009 010 0002

Product column：Rectangular Connectors>>Inserts>>HK insert series

Product Introduction：Male/female:Male,Connection type:Crimp connection,Number of connector contacts:9+12+25+PE,Rated current:10A|40A|5A,Rated voltage:250V|630V|50V,Wire gauge (mm²):0.14-2.5mm²|1.5-6mm²|0.09-0.52mm²,Wire gauge (AWG):26-14 AWG|16-10 AWG|28-20 AWG

+more

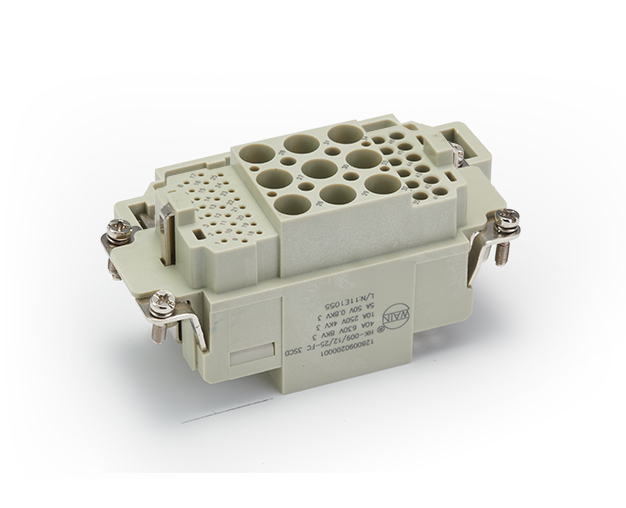

HK-009/12/25-FC
Insert

128 009 020 0002

Product column：Rectangular Connectors>>Inserts>>HK insert series

Product Introduction：Connection type:Crimp connection,Male/female:Female,Number of connector contacts:9+12+25+PE,Rated current:10A|40A|5A,Rated voltage:250V|630V|50V,Wire gauge (mm²):0.14-2.5mm²|1.5-6mm²|0.09-0.52mm²,Wire gauge (AWG):26-14 AWG|16-10 AWG|28-20 AWG

+more

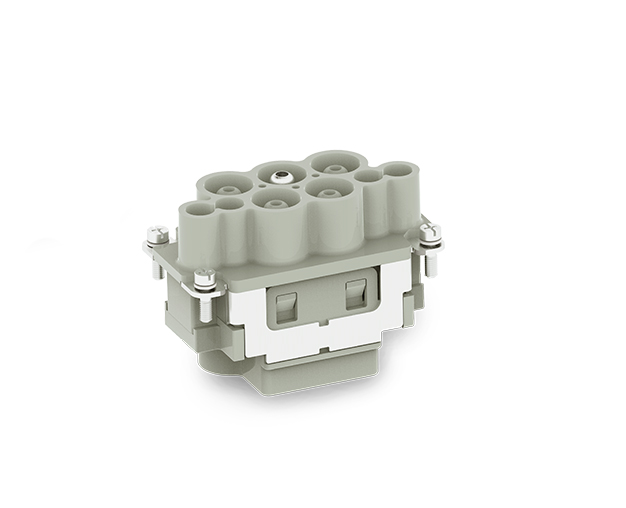

HK-004/4.1-M(6-16mm2)
Insert

128 008 011 0002

Product column：Rectangular Connectors>>Inserts>>HK insert series

Product Introduction：Connection type:Axial bolt connection,Male/female:Male,Number of connector contacts:4+4+PE,Rated current:63A|16A,Rated voltage:690V|250V,Wire gauge (mm²):6-16mm²|0.14-2.5mm²,Wire gauge (AWG):10-6 AWG|26-14 AWG

+more

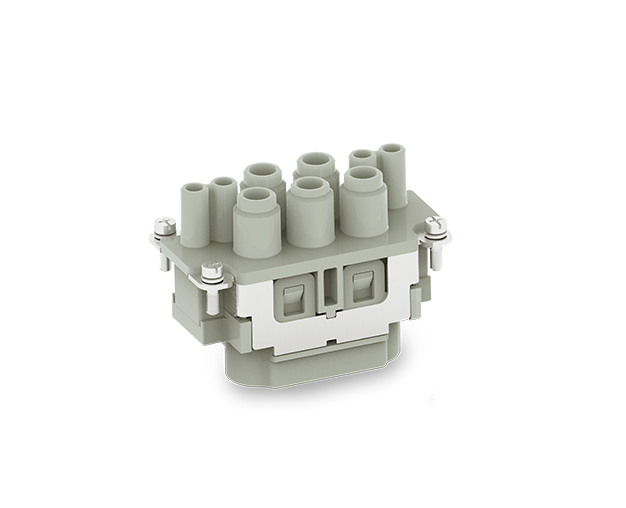

HK-004/4.1-F(6-16mm2)
Insert

128 008 021 0002

Product column：Rectangular Connectors>>Inserts>>HK insert series

Product Introduction：Male/female:Female,Connection type:Axial bolt connection,Number of connector contacts:4+4+PE,Rated current:63A|16A,Rated voltage:690V|250V,Wire gauge (mm²):6-16mm²|0.14-2.5mm²,Wire gauge (AWG):10-6 AWG|26-14 AWG

+more
HK-004/4.2-M(14-22mm2)
Insert

128 008 011 0003

Product column：Rectangular Connectors>>Inserts>>HK insert series

Product Introduction：Male/female:Male,Connection type:Axial bolt connection,Number of connector contacts:4+4+PE,Rated current:63A|16A,Rated voltage:690V|250V,Wire gauge (mm²):14-22mm²|0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

+more
HK-004/4.2-F(14-22mm2)
Insert

128 008 021 0003

Product column：Rectangular Connectors>>Inserts>>HK insert series

Product Introduction：Male/female:Female,Connection type:Axial bolt connection,Number of connector contacts:4+4+PE,Rated current:63A|16A,Rated voltage:690V|250V,Wire gauge (mm²):14-22mm²|0.14-2.5mm²,Wire gauge (AWG):26-14 AWG

+more
