Products Rectangular Connectors Inserts-HD insert series

HD insert series

Ultra-high density inserts

250V/10A

Up to 128 contacts

Crimp connection

28 search results

total:28 :

1 2 3 4

page:4/1

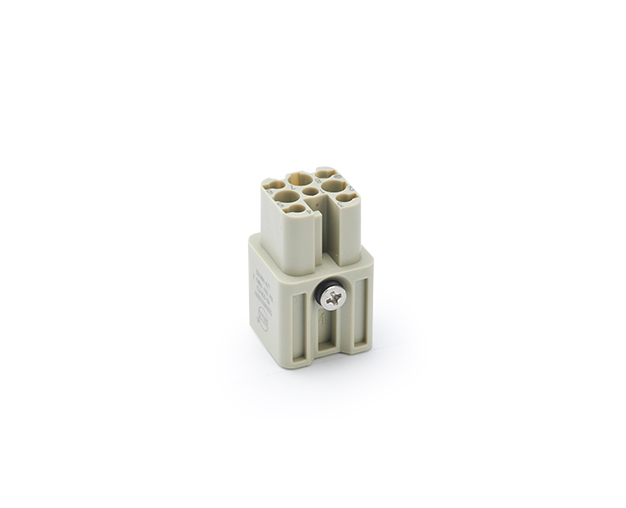

HD-008-FQ
Insert

125 008 002 0001

Product column：Rectangular Connectors>>Inserts>>HD insert series

Product Introduction：Connection type:Spring connection (quick connection),Male/female:Female,Specifications:3A,Number of connector contacts:8,Rated current:10A,Rated voltage:50V DC|120V AC,Wire gauge (mm²):0.5-2.5mm²,Wire gauge (AWG):20-14 AWG

+more

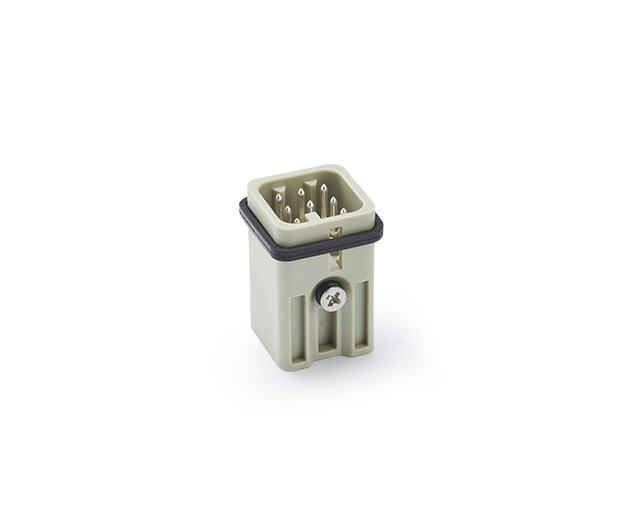

HD-008-MQ
Insert

125 008 001 0001

Product column：Rectangular Connectors>>Inserts>>HD insert series

Product Introduction：Connection type:Spring connection (quick connection),Male/female:Male,Specifications:3A,Number of connector contacts:8,Rated current:10A,Rated voltage:50V DC|120V AC,Wire gauge (mm²):0.5-2.5mm²,Wire gauge (AWG):20-14 AWG

+more

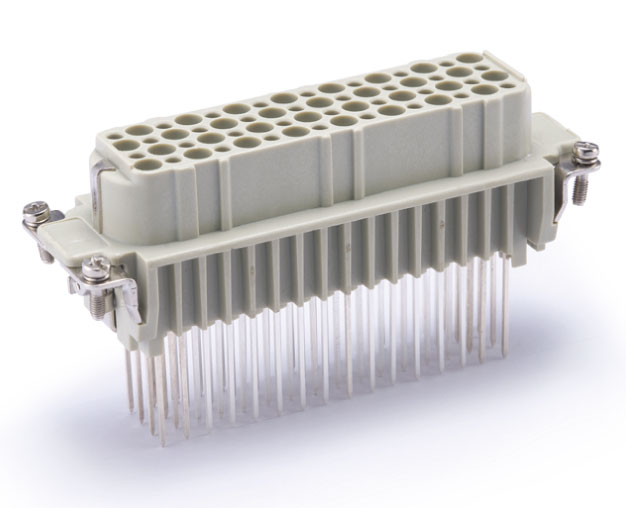

HD-064-FTHT
Insert

125 064 024 0001

Product column：Rectangular Connectors>>Inserts>>HD insert series

Product Introduction：Connection type:,Male/female:,Specifications:,Number of connector contacts:,Rated current:,Rated voltage:,Insulation resistance:,Inserts material:,Contact material:,Wire gauge (mm²):
Suitable for the shell of the insert housing

+more

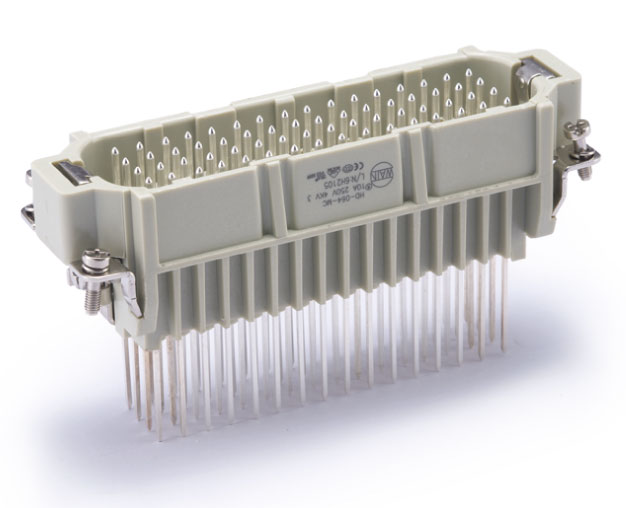

HD-064-MTHT
Insert

125 064 014 0001

Product column：Rectangular Connectors>>Inserts>>HD insert series

Product Introduction：Connection type:,Male/female:,Specifications:,Number of connector contacts:,Rated current:,Rated voltage:,Insulation resistance:,Inserts material:,Contact material:,Wire gauge (mm²):
Suitable for the shell of the insert housing

+more

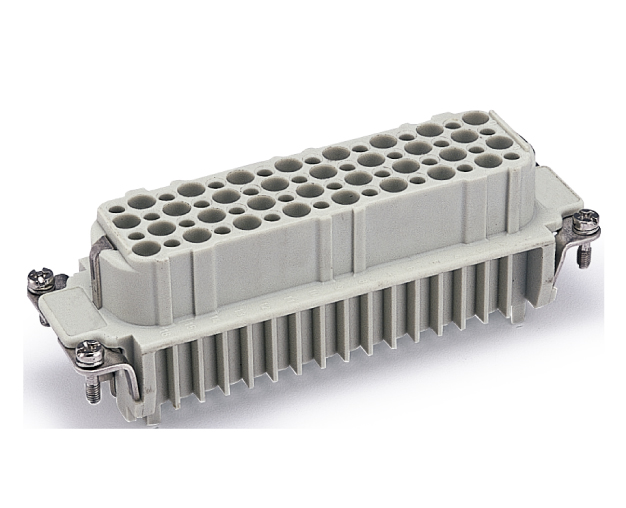

HD-064-FC/P
Insert

125 064 020 0021

Product column：Rectangular Connectors>>Inserts>>HD insert series

Product Introduction：Connection type:Crimp connection,Male/female:Female,Specifications:24B|48B,Number of connector contacts:64+PE,Rated current:10A,Rated voltage:250V,Wire gauge (mm²):0.5-1.5mm²|1.5-2.5mm²,Wire gauge (AWG):20-16 AWG|16-14 AWG
Suitable for the shell of the insert housing

+more

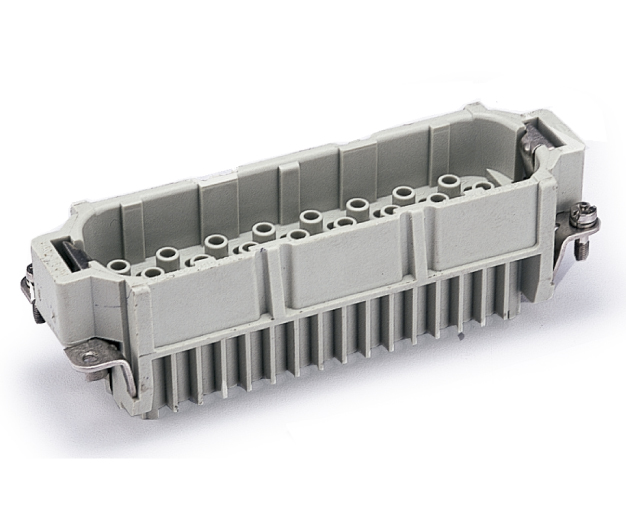

HD-064-MC/P
Insert

125 064 010 0021

Product column：Rectangular Connectors>>Inserts>>HD insert series

Product Introduction：Connection type:Crimp connection,Male/female:Male,Specifications:24B|48B,Number of connector contacts:64+PE,Rated current:10A,Rated voltage:250V,Wire gauge (mm²):0.5-1.5mm²|1.5-2.5mm²,Wire gauge (AWG):20-16 AWG|16-14 AWG
Suitable for the shell of the insert housing

+more

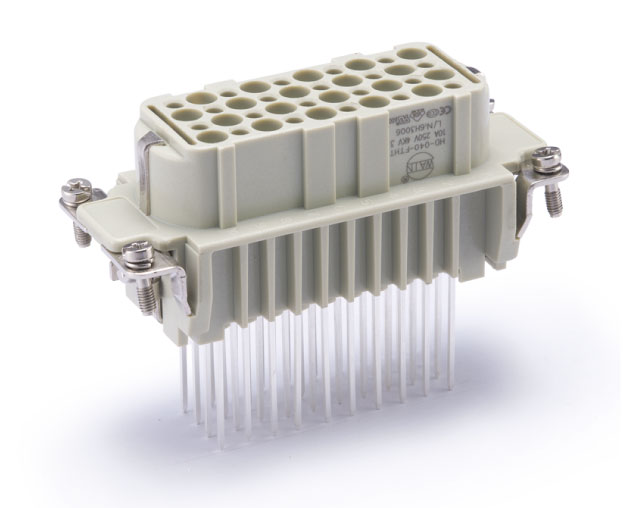

HD-040-FTHT
Insert

125 040 024 0001

Product column：Rectangular Connectors>>Inserts>>HD insert series

Product Introduction：Connection type:,Male/female:,Specifications:,Number of connector contacts:,Rated current:,Rated voltage:,Insulation resistance:,Inserts material:,Contact material:,Wire gauge (mm²):
Suitable for the shell of the insert housing

+more

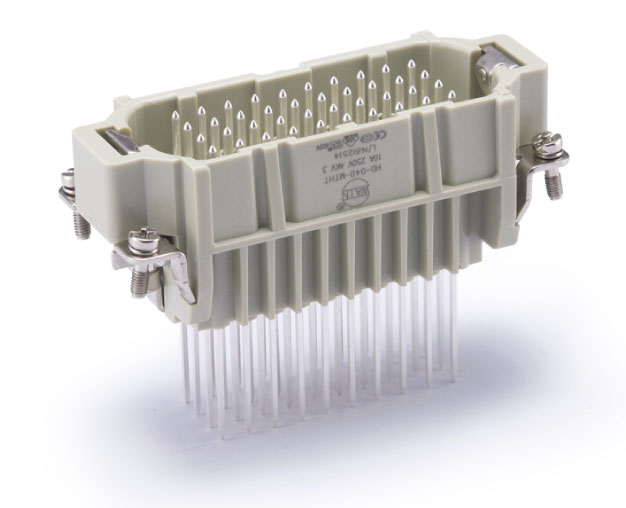

HD-040-MTHT
Insert

125 040 014 0001

Product column：Rectangular Connectors>>Inserts>>HD insert series

Product Introduction：Connection type:,Male/female:,Specifications:,Number of connector contacts:,Rated current:,Rated voltage:,Insulation resistance:,Inserts material:,Contact material:,Wire gauge (mm²):
Suitable for the shell of the insert housing

+more
